When people think of induction heating, they usually picture factory floors—hardening steel shafts, brazing copper fittings, or annealing pipe ends after welding. What gets far less attention is a quieter but equally practical application: using air-cooled electromagnetic induction systems to heat water for boilers, hotel hot-water circuits, guesthouses, and outdoor car wash stations in cold regions.
KETCHAN has deployed exactly this kind of system across multiple sites, and the results highlight something the HVAC and facility management industries are still catching up to — induction is not just for metalworking. Once you understand the physics, the application makes complete sense.
What Is an Air-Cooled Induction Heater?
An air-cooled induction heater is an electromagnetic heating system that uses a high-frequency alternating current passed through a copper coil to generate a rapidly oscillating magnetic field. When a conductive pipe or vessel sits inside that field, eddy currents are induced directly in the pipe wall. Those currents encounter electrical resistance in the metal, and that resistance converts directly to heat — inside the pipe wall itself, not in a separate element that then has to transfer heat to the water inside.
The “air-cooled” distinction matters here. Conventional high-power induction systems require a closed-loop water cooling circuit to keep the copper coil from overheating. Air-cooled designs use internal fans and thermally engineered coil geometries to achieve the same result with ambient air, eliminating the need for a secondary cooling circuit. This simplifies installation, reduces maintenance touchpoints, and makes the system considerably more practical in remote or outdoor settings — such as rooftop mechanical rooms or outdoor equipment pads.

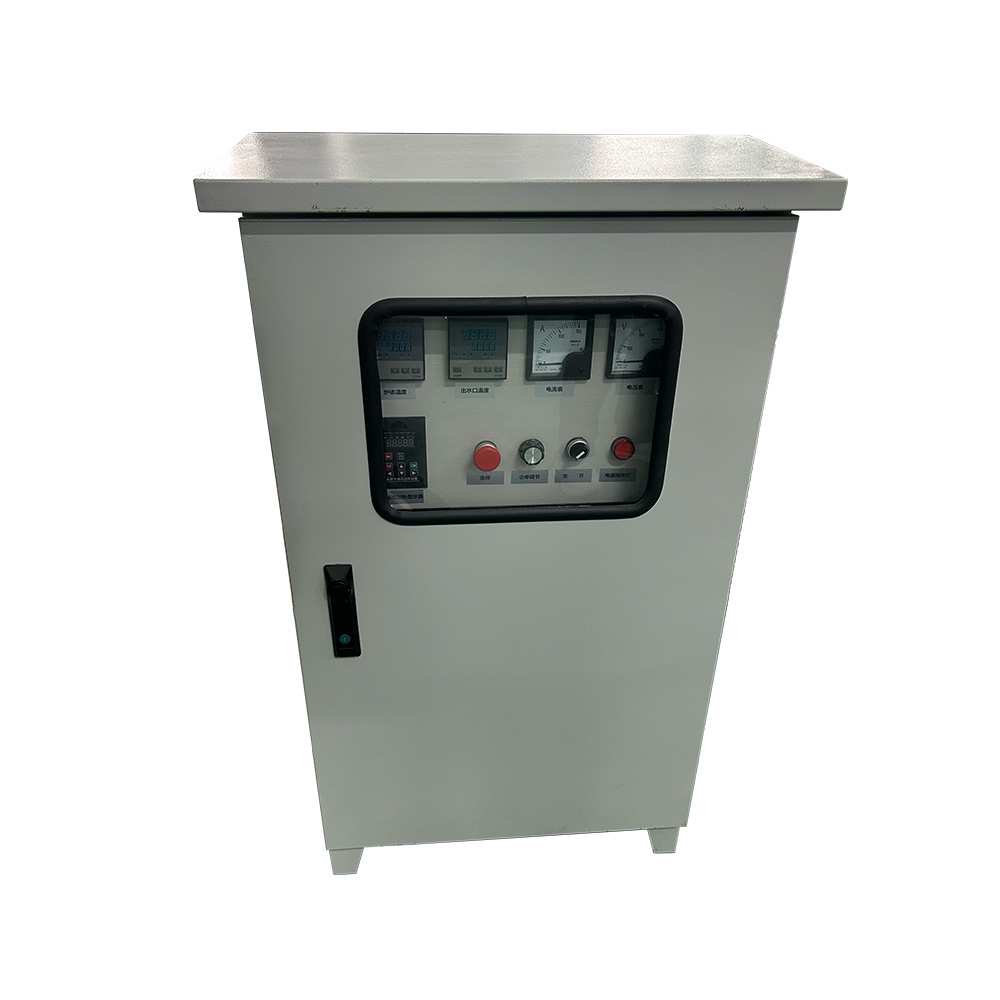

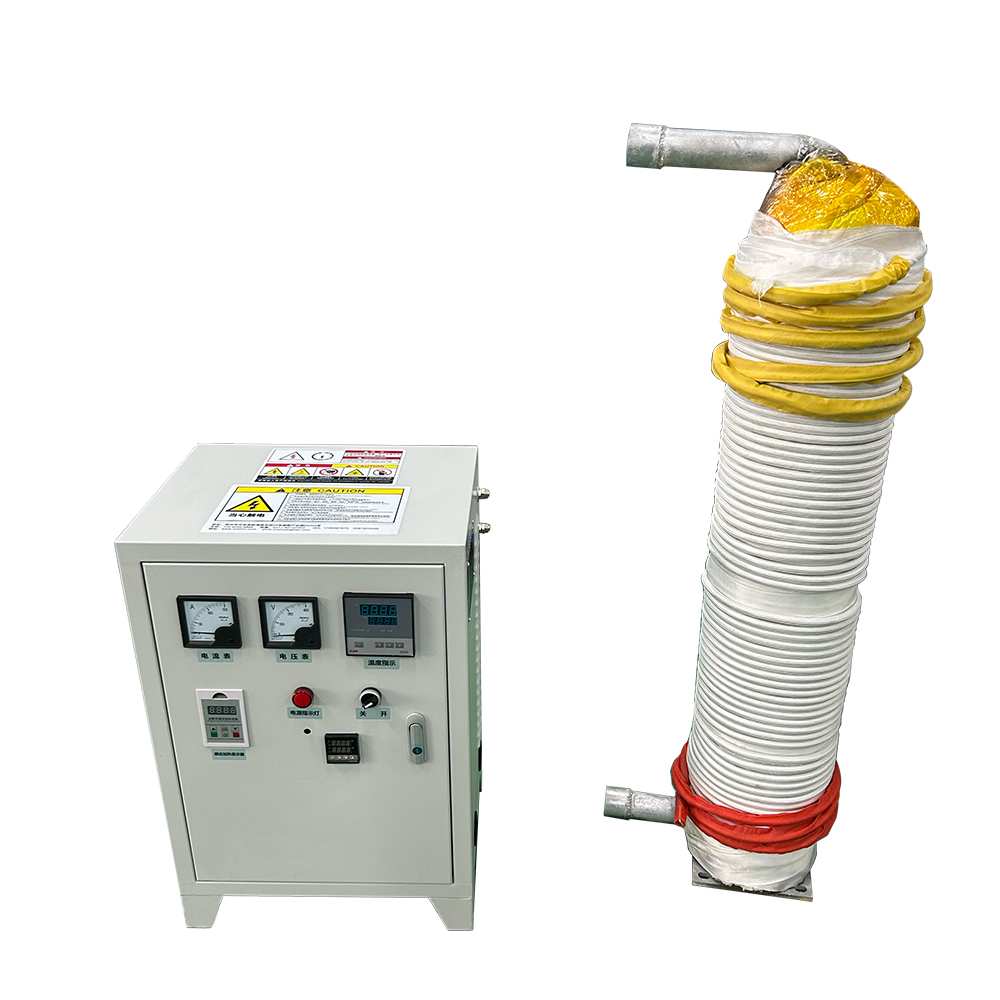

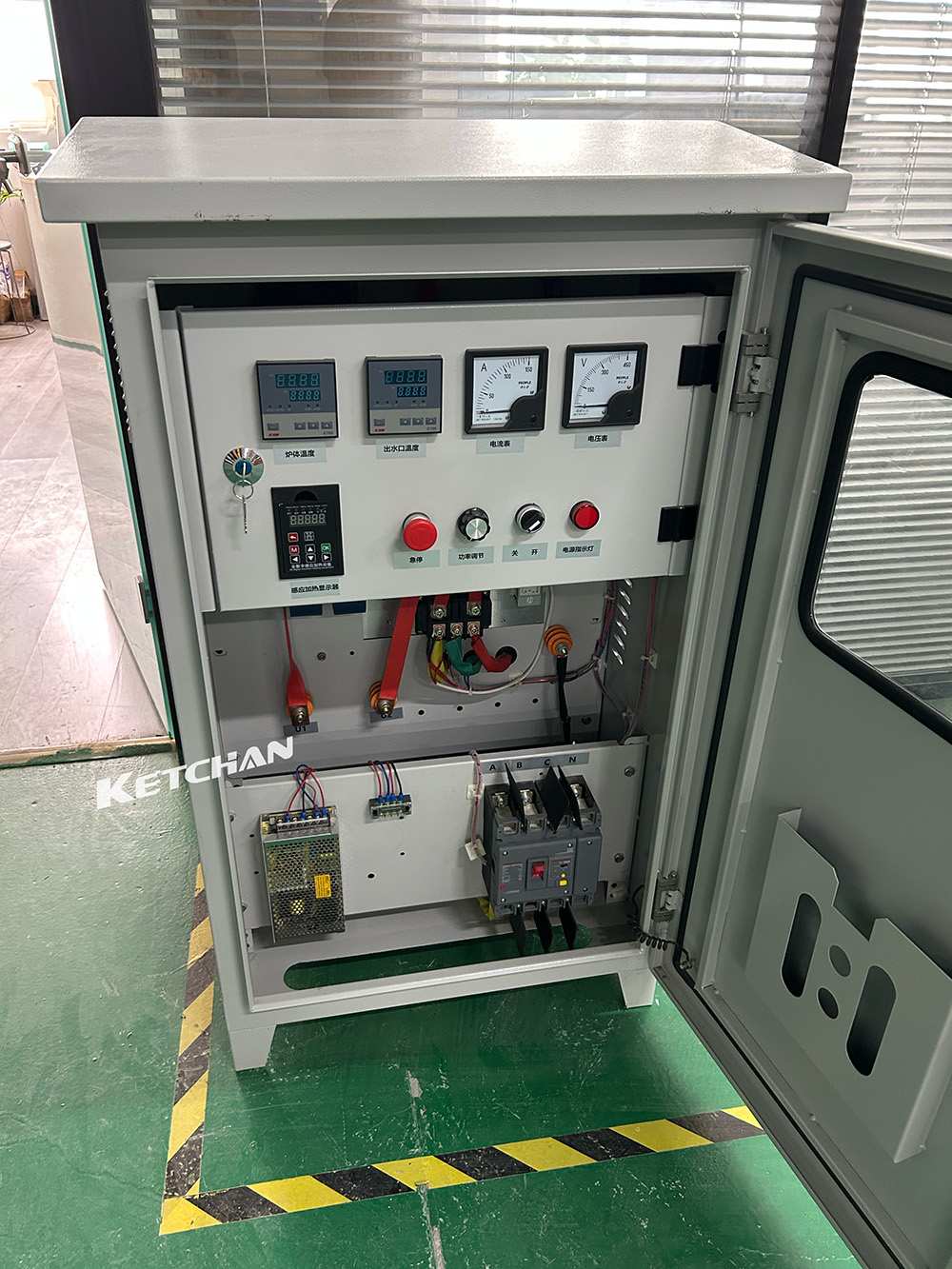

The control cabinet regulates frequency, output power, and temperature feedback from thermocouples on the pipe, giving operators precise, near-real-time control over the heating process.
The Physics Behind Pipe Heating via Induction
The core mechanism is straightforward electromagnetic theory, but a few specific details explain why it works so well for water heating through pipe walls.
When alternating current flows through the induction coil at medium or high frequency (typically 1 kHz to 50 kHz for pipe heating), the magnetic field it generates reverses direction dozens to thousands of times per second. A conductive pipe sitting inside this field has currents induced within it that follow the same reversal pattern.
Two effects contribute to heating:
Eddy current losses. The induced currents circulate within the pipe wall and are resisted by the electrical resistivity of the material (typically carbon steel or stainless steel). That resistance dissipates energy as heat according to Joule’s law (P = I²R). Because this happens throughout the cross-section of the pipe wall, heat generation is volumetric — no hot spots, no contact surfaces, no scale-up on an element.
Hysteresis losses (in ferromagnetic materials). Magnetic domains in carbon steel resist the repeated reversal of the applied magnetic field. That resistance generates additional heat. This effect disappears above the Curie temperature (~770°C for carbon steel), but in water-heating applications where operating temperatures stay well below 100°C, hysteresis contributes meaningfully to overall efficiency.
Because the heating occurs inside the pipe wall and works outward into the water by conduction and convection, there is no limescale accumulation on a heating element — a chronic problem with immersion-type electric elements in hard-water areas.
Skin depth also plays a role in system design. At higher frequencies, induced currents concentrate closer to the outer surface of the pipe wall (the skin effect). Engineers select frequency and coil geometry to ensure sufficient penetration depth for the pipe wall thickness in use, balancing heating uniformity against power density.
Practical Applications: Where These Systems Are Being Installed
1. Industrial and Commercial Boiler Heating
Traditional electric boilers rely on immersion resistance elements submerged directly in water. Over time, mineral scale accumulates on those elements, progressively reducing heat transfer efficiency and eventually requiring element replacement. Gas-fired boilers involve combustion, flue requirements, gas supply infrastructure, and combustion safety systems.

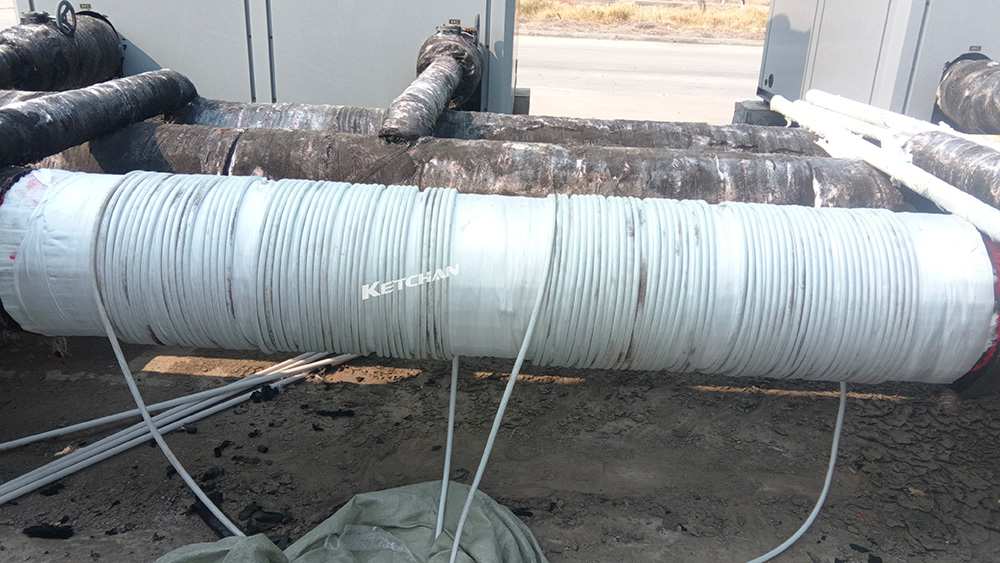

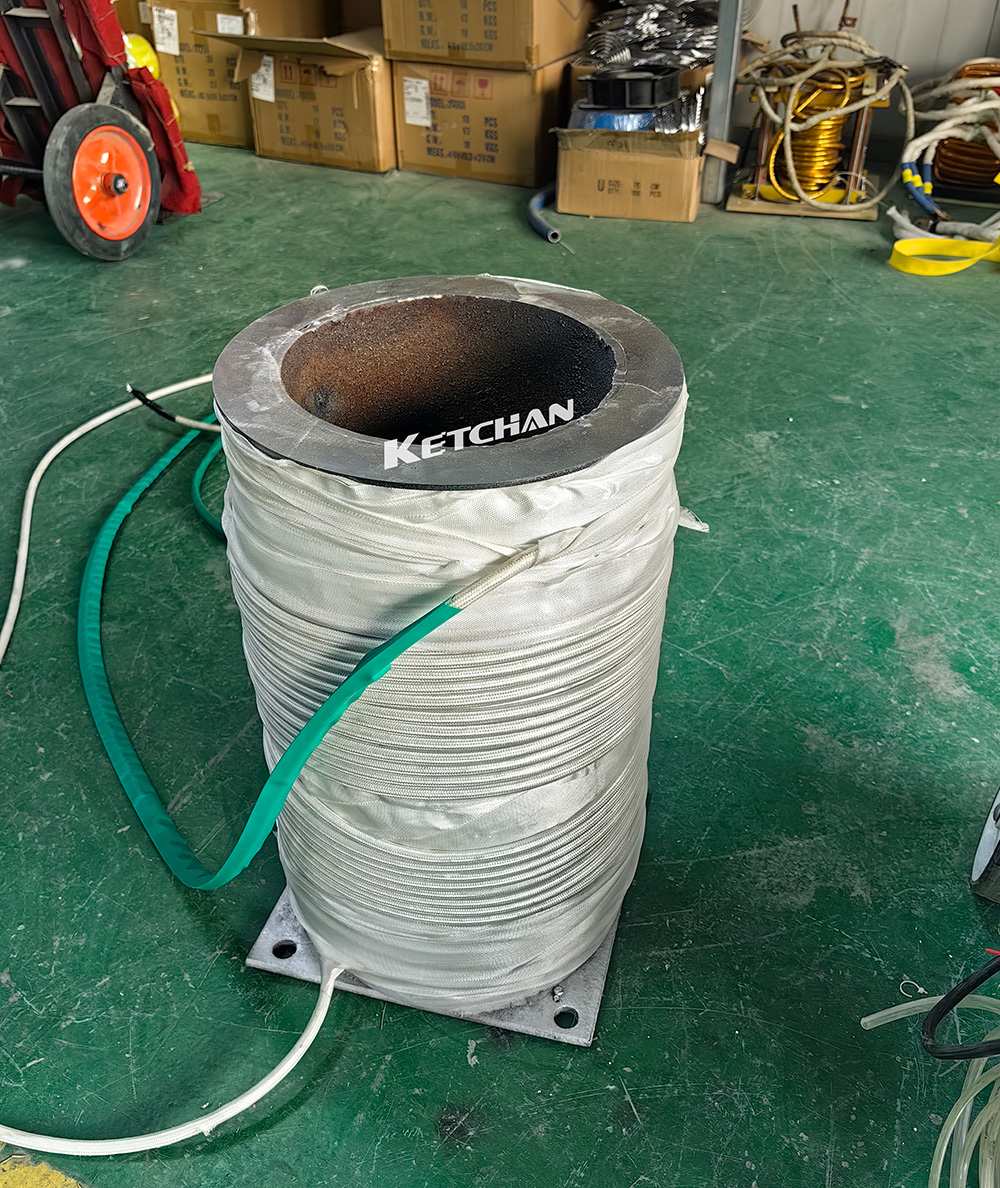

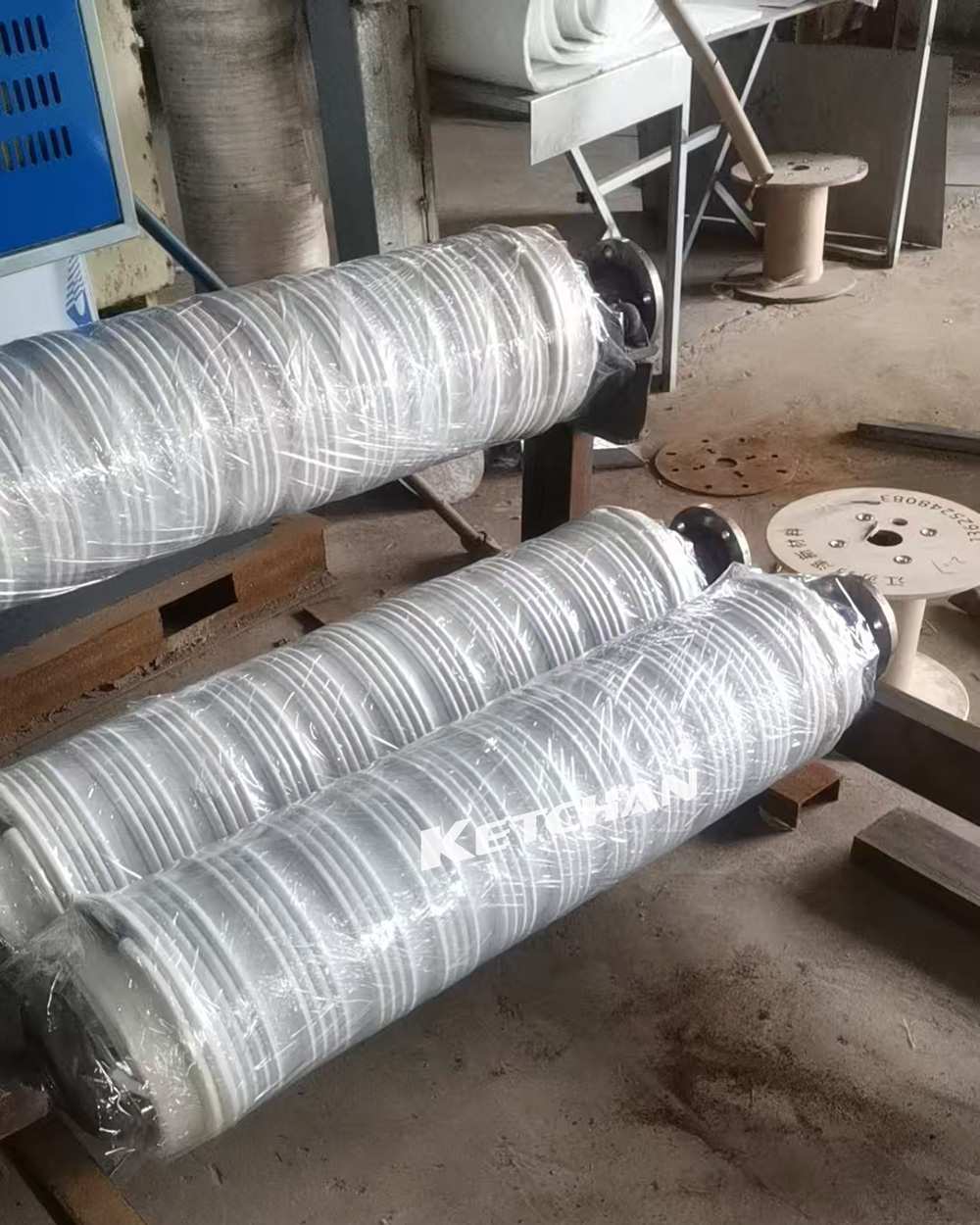

An induction-based boiler heating approach wraps the coil around the boiler’s supply or return pipe. The pipe wall heats by induction; that heat conducts into the water as it flows. Because the pipe’s interior surface never exceeds the water temperature by much — there’s no localized “hot spot” as there is with a resistance element — scale formation is significantly reduced. The system can be sized modularly, adding coil sections to increase output.
For facilities that already have a water loop (closed-loop heating circuits for floor heating, radiant panels, or process heating), retrofitting an induction pipe heater into the loop is often simpler than replacing a legacy boiler. The induction unit drops into the pipework without structural modification to the building.
2. Hotel and Guesthouse Hot Water Supply
Hotels have demanding hot-water profiles: occupancy peaks in the morning and evening, with long quiet periods in between. Traditional tank storage systems maintain large volumes of water at temperature continuously, wasting standby energy throughout the quiet hours. This standby loss is one of the largest inefficiencies in commercial hot-water systems.
An induction system paired with appropriate pipe sizing and a buffer tank can provide on-demand or near-on-demand heating with sharply reduced standby losses. The system energizes when demand is detected and ramps output in response to flow rate and inlet temperature — both measurable parameters that feed the control cabinet’s logic.
The separation of water and electrical components is another meaningful feature for hotel environments. There is no direct contact between the electrical circuit and the water. The coil is outside the pipe; the pipe wall is the only thing that gets hot. This reduces the risk profiles associated with immersion elements and simplifies compliance with electrical safety codes in some jurisdictions.
3. Car Wash Warm Water in Cold Climates
Cold-region car washes — common in northern China, Mongolia, Russia, Kazakhstan, and other high-latitude or high-altitude markets — face a specific operational problem: tap water in winter can be close to freezing, which damages vehicle finishes, reduces cleaning chemical effectiveness, and creates ice hazards on the wash floor. Heating the supply water to 25–40°C transforms all three of these outcomes.
Gas infrastructure is often unavailable or impractical at standalone car wash sites. Electric resistance heating is simple but expensive to operate at the volumes an active car wash demands. An air-cooled induction heater provides a middle path: high thermal efficiency, no combustion infrastructure, compact footprint, and an installation profile compatible with the kind of prefabricated equipment rooms typical of commercial car washes.
The coil wraps around the incoming water line. The control cabinet sits nearby and is sized to the flow rate and target temperature rise. Because the heating is continuous-flow rather than storage-based, the system doesn’t need to maintain a large tank at temperature between wash cycles—it heats the water as it moves through the pipe.
Recommended Applications for Air-Cooled Induction Pipe Heating
Beyond the three core use cases above, the same equipment configuration is well-suited for:
- Greenhouse heating loops in cold-climate agriculture, where gas supply is limited and freeze protection of the piping circuit is critical
- Swimming pool and spa water preheating at resorts and recreational facilities, where heating demand is continuous and precise temperature targeting matters for guest experience
- Food processing warm water for cleaning, blanching pre-rinse circuits, and CIP (clean-in-place) systems where consistent water temperature affects hygiene outcomes
- Remote industrial camps in cold regions (mining, oil and gas support facilities) where workers require reliable hot water and gas supply is impractical
- Pre-heating of viscous fluids in pipelines — heating heavy fuel oil, asphalt, or chemical process streams that require temperature maintenance to flow properly
Advantages Specific to Air-Cooled Designs in These Applications
No secondary cooling circuit. Water-cooled induction systems require a closed cooling loop for the coil, adding plumbing, a pump, and a heat exchanger. Air-cooled designs remove this entirely. For rooftop installations (common in hotel mechanical rooms), outdoor equipment pads, and industrial sites without a cooling water supply, this is not a minor convenience — it’s often the deciding factor.
Rapid response. Induction heating reaches operating temperature within seconds of energizing. There is no warm-up period comparable to a resistance element or a gas burner reaching steady state. For on-demand applications, this matters for user experience and energy use.
Precise temperature control. The control cabinet monitors thermocouple feedback and adjusts output power in real time. Temperature accuracy of ±1–2°C is achievable, which matters in applications like hotel hot water (Legionella prevention requires consistent temperatures above 60°C in stored water, while comfort delivery targets 45–55°C at the tap) and process water where temperature consistency affects outcome.
Minimal moving parts. An air-cooled induction system has a coil, a control cabinet, and cooling fans. There is no burner, no combustion assembly, no flue, no pump (in the air-cooled variant). The maintenance burden is low: periodic inspection of the coil insulation and air filter cleaning, versus annual burner servicing, flue inspection, and element replacement cycles.
No open flame, no combustion byproducts. For indoor boiler rooms with limited ventilation, underground mechanical spaces, or sites in regions with strict air quality requirements, eliminating combustion is more than an efficiency argument — it’s a safety and permitting argument.
Modular power scaling. KETCHAN systems are available in a range of output power ratings. Multiple units can operate in parallel on the same pipe circuit, and individual units can be staged on and off in response to demand. This makes the system inherently scalable without replacing the core equipment.
Selecting the Right System: Key Parameters
When specifying an air-cooled induction pipe heater for boiler or hot-water applications, the following parameters drive the sizing calculation:
- Flow rate (liters per minute or cubic meters per hour) — determines how much thermal energy must be added per unit time
- Inlet water temperature — in cold climates, winter inlet temperatures may be 5°C or lower, setting the temperature rise requirement
- Target outlet temperature — typically 45–65°C for domestic hot water applications
- Required power (kW) = flow rate (kg/s) × specific heat of water (4.18 kJ/kg·°C) × temperature rise (°C)
- Pipe material and wall thickness — affects coil gap design and heating efficiency
- Ambient operating temperature — for air-cooled systems, ambient temperature affects coil cooling performance; high ambient environments may require derating
A properly sized system will achieve the target temperature rise at the design flow rate while maintaining safe coil temperatures and operating within the inverter’s continuous duty rating.
Closing Thoughts
The application of air-cooled electromagnetic induction to water heating — whether for boilers, hotel circuits, or cold-weather car washes — is not a new principle but remains an underappreciated one. The physics are mature, the equipment is commercially available, and the practical advantages over both resistance heating and gas-fired systems are real in the right contexts.
KETCHAN’s deployments demonstrate that these systems perform reliably in outdoor environments, across a range of climates and load conditions, with a maintenance profile that suits facilities without dedicated engineering staff. For any application where gas is inconvenient, resistance elements scale poorly, and water quality makes element fouling a recurring problem, induction pipe heating deserves serious evaluation.
