What is three-axis turntable type automatic flame brazing machine?
The three-axis turntable type automatic flame brazing machine is an integrated production system designed for high-efficiency, repeatable brazing of metal components requiring precise heat distribution and synchronized motion control. By combining a programmable rotary indexing table with coordinated three-axis torch movement, the system enables stable, uniform brazing across multiple workstations. This configuration significantly improves cycle time, joint consistency, and operational safety compared to linear or manual brazing methods, making it particularly suitable for continuous industrial manufacturing environments.

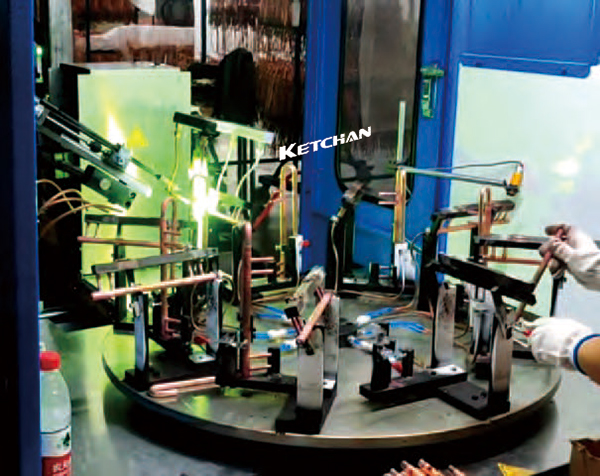

The three-axis turntable-type automatic flame brazing machine features an advanced four-station turntable layout, integrating automatic loading and unloading, intelligent inspection, three-axis precision brazing, and rapid cooling into one, thereby realizing efficient cyclic production. The three – axis linkage flame welding torch precisely controls the welding path, supporting simultaneous processing of multiple workpieces or continuous brazing of multiple welding points on a single workpiece, which greatly improves production efficien-cy and process flexibility. The modular design ensures rapid model change to meet diverse product requirements. With high – precision positioning and intelligent operation, welding becomes more stable, accurate, and simple, making it an ideal solution for modern brazing production.
Key Industry Advantages
- Rotary indexing turntable enables multi-station continuous operation, increasing throughput.
- Three-axis controlled torch movement ensures consistent flame positioning and uniform heat input.
- PLC-based automation allows precise control of gas flow, flame timing, and process parameters.
- Reduced operator dependency, improving safety and process repeatability.
- Capable of integrating automatic loading, unloading, and in-line inspection systems.
Main technical parameters of three-axis turntable-type automatic flame brazing machine
What are three-axis turntable-type automatic flame brazing machine applications?
- HVAC and Refrigeration Components
Ideal for brazing copper and brass components such as distributors, manifolds, return bends, and multi-port fittings used in air-conditioning and refrigeration systems. - Automotive Thermal and Fluid Systems
Used for brazing pipe assemblies, cooling system components, oil lines, and fuel-related fittings where consistent joint quality is critical. - Plumbing and Fluid Control Assemblies
Suitable for mass production of valves, connectors, and pipe joints requiring stable brazing quality and repeatable positioning. - Heat Exchanger and Cooling Assemblies
Applicable to brazing of tube-to-header joints and compact heat exchanger subassemblies. - General Metal Fabrication
Supports automated brazing of steel, stainless steel, copper, aluminium and brass parts in industrial equipment and machinery manufacturing.
